Accessories

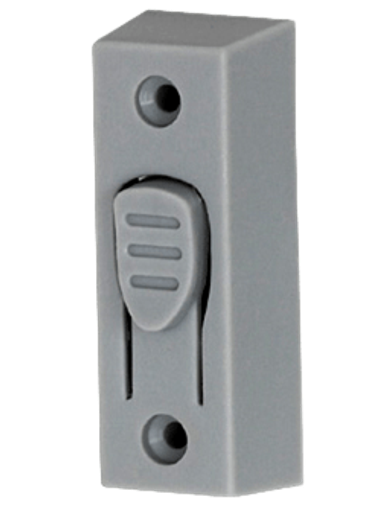

1R Push Button

1 N.O. Momentary Contact Plastic Housing H - 2.44” W - 0.87” D - 0.75”

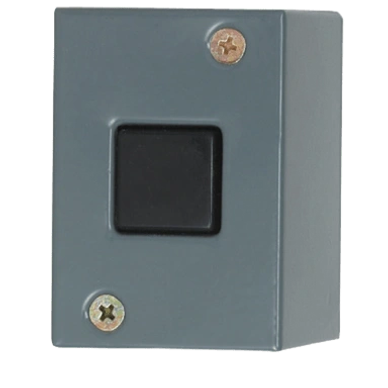

1B Push Button

1R Push Button

1 N.O. Momentary Contact Sheet Metal Housing H - 2.87” W - 2.31” D - 1.75”

2B Push Button

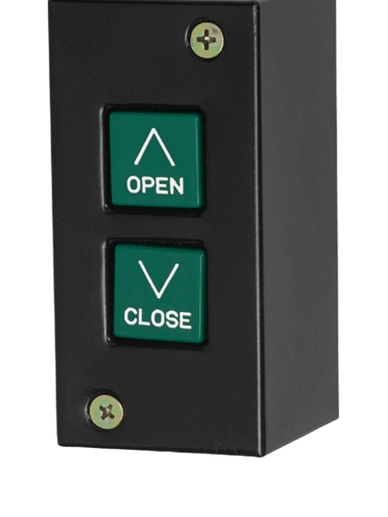

OPEN (N.O.) - CLOSE (N.O.) Momentary Contact Sheet Metal Housing H- 4.13” W - 2.31” D - 1.75”

3B Push Button

2BF Push Button

2B Push Button

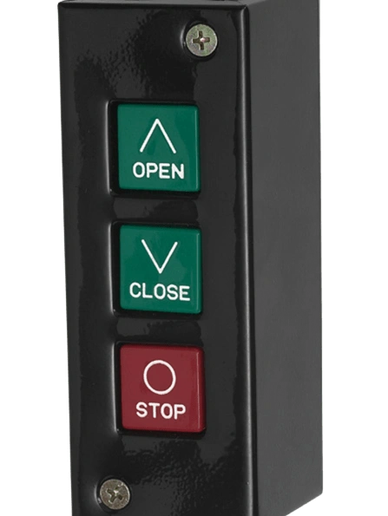

3B OPEN (N.O.) - CLOSE (N.O.) - STOP (N.C.) Momentary Contact Sheet Metal Housing H - 5.31” W - 2.31” D - 1.75”

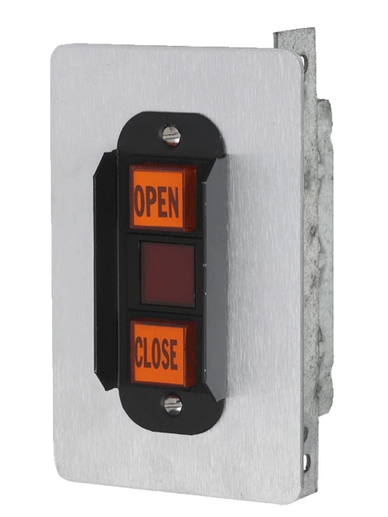

2BF Push Button

OPEN (N.O.) - CLOSE (N.O.) Momentary Contact Aluminum Faceplate Steel Back Box

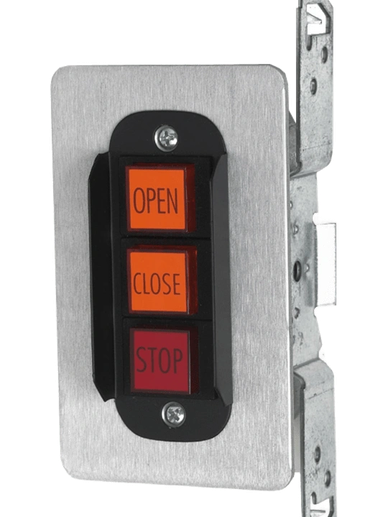

3BF Push Button

2BF Push Button

OPEN (N.O.) - CLOSE (N.O.) - STOP (N.C.) Momentary Contact Aluminum Faceplate Steel Back Box

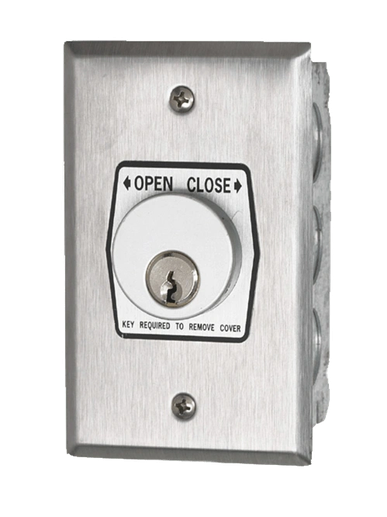

HBF Key Station

HBFS Key Station

Keyed OPEN (N.O.) - CLOSE (N.O.) Momentary Contact Center Return Stainless Steel Faceplate: H - 4.5” x W - 2.75” Steel Back Box: H - 4.0” W - 2.12” D - 2.75”

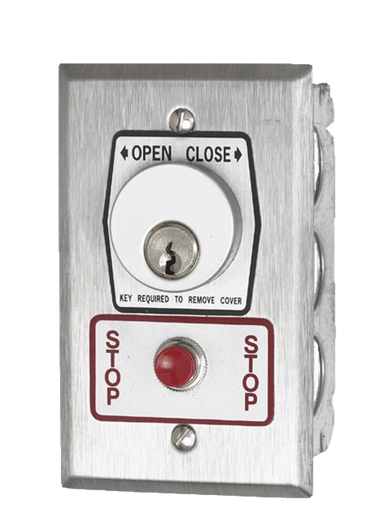

HBFS Key Station

Keyed OPEN (N.O.) - CLOSE (N.O.) Stop Button (N.C.) Momentary Contact Center Return Stainless Steel Faceplate:

H - 4.5” x W - 2.75” Steel Back Box: H - 4.0” W - 2.12” D - 2.75”

Mid-Stop Switch

HBFS Key Station

1KFXS Key Station

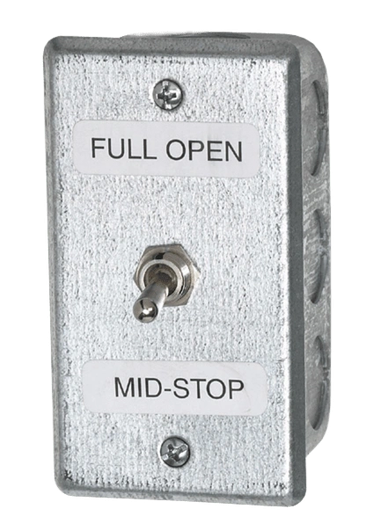

Mid-Stop Switch use to stop door partially open or full open. Steel Faceplate: H - 4.25” W - 2.38” Steel Black Box: H - 3.87” W - 2.00” D - 1.75”

1KFXS Key Station

Keyed OPEN (N.O.) - CLOSE (N.O.) STOP Button (N.C.) Momentary Contact Center Return Yale Keyway Mortise Cylinder Std (Also available w/o Stop as 1KFX) Aluminum Faceplate: H-6” W - 4.75” Steel Black Box: H - 3.75” W - 3.75” D - 2.75” Specify Single, Keyed alike or Keyed in pairs.

3BXL Push Button

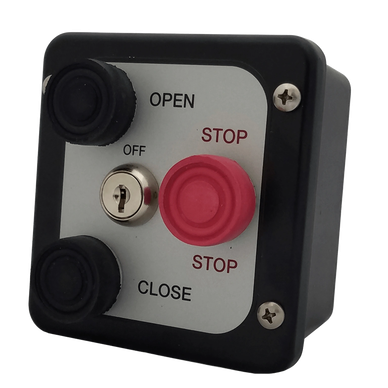

Powder Coated Aluminum Enclosure OPEN (N.O.) - CLOSE (N.O.) - STOP (N.C.) Momentary Contact ON-OFF Cylinder Maintained Contact H - 4.37” W - 4.12” D - 2.62”

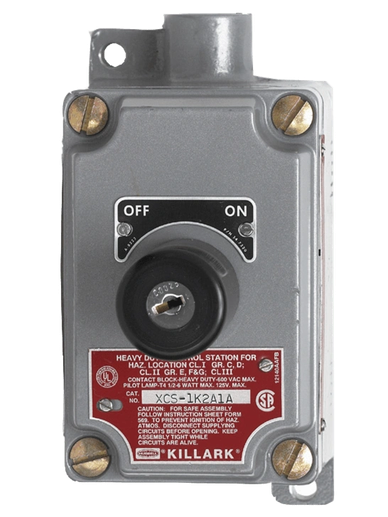

1EKXL Key Station

NEMA 7 & 9 Explosion Proof OFF - ON Maintained Keyed Lockout Key removable in both positions Powder Coated Aluminum Enclosure H - 5.37” W - 3.00” D - 3.25”

1KF Key Station

1KF-IC Key Station

1KFS Key Station

Keyed OPEN (N.O.) - CLOSE (N.O.) Momentary Contact, Center Return Yale Keyway Mortise Cylinder Standard Aluminum Faceplate: H - 6” W - 4.75” Steel Back Box: H - 3.75” W - 3.75” D - 2.75” Specify Single, Keyed alike or Keyed in pairs.

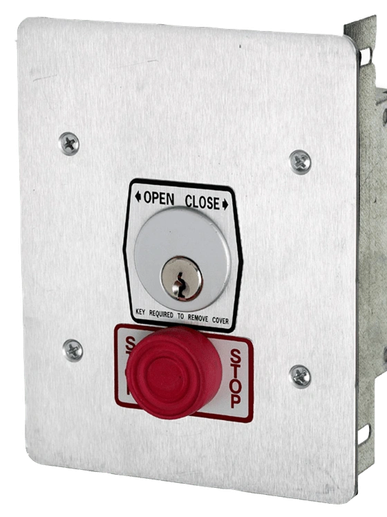

1KFS Key Station

1KF-IC Key Station

1KFS Key Station

Keyed OPEN (N.O.) - CLOSE (N.O.) Stop Button (N.C.) Momentary Contact Center Return Yale Keyway Mortise Cylinder Standard Aluminum Faceplate: H - 6” W- 4.75” Steel Back Box: H - 3.75” W - 3.75” D - 2.75” Specify Single, Keyed alike or Keyed in pairs.

1KF-IC Key Station

Keyed OPEN (N.O.) - CLOSE (N.O.) Momentary Contact, Center Return Interchangeable Core Mortise Cylinder. Accepts 7 Pin Best Core. Also available w/STOP button (1KFS-IC) Aluminum Faceplate: H - 6” W- 4.75” Steel Back Box: H - 3.75” W - 3.75” D - 2.75”

Interlock Switch

1KF-IC Key Station

IS-1 for Pass Door IS-2 for Sectional Door IS-3 for Rolling Steel Door or Grille H - 3.37” W - 2.13” D - 2.50”

3BFX Push Button

Interlock Switch

3BFX Push Button

OPEN (N.O.) - CLOSE (N.O.) - STOP (N.C.) Momentary Contact

CP-1

Interlock Switch

3BFX Push Button

Exterior Ceiling Pull Switch SPST Momentary Contact Aluminum Enclosure H - 4.00” W 3.75” D - 2.87”

1BX Push Button

Powder Coated Aluminum Enclosure Single Button (N.O.) Momentary Contact Standard H - 4.37” W - 4.12” D - 2.62”

2BX Push BUtton

1BX Push Button

Powder Coated Aluminum Enclosure OPEN (N.O.) - CLOSE (N.O.) Momentary Contact H - 4.37” W - 4.12” D - 2.62”

3BX Push Button

1BX Push Button

3BLM Push Button

Powder Coated Aluminum Enclosure OPEN (N.O.) - CLOSE (N.O.) - STOP (N.C.) Momentary Contact H - 4.37” W - 4.12” D - 2.62”

3BLM Push Button

3B4XL Push Button

3BLM Push Button

Powder Coated Steel Enclosure OPEN (N.O.) - CLOSE (N.O.) - STOP (N.C.) Momentary Contact ON-OFF Mortise Cylinder Center Return Available with standard Yale Keyway or Interchangeable Core Cylinder as shown.

3B4X Push Button

3B4XL Push Button

NEMA 4x OPEN (NO) - CLOSE (N.O.) - STOP (N.C.) Momentary Contact Grey Polycarbonate Enclosure H - 4.50” W - 3.50” D - 2.12”

3B4XL Push Button

NEMA 4x OPEN (N.O.) - CLOSE (N.O.) - STOP (N.C.) Momentary Contact ON-OFF Cylinder Maintained Contact Grey Polycarbonate Enclosure H - 4.50” W - 3.50” D - 2.12”

1K4X Key Station

OPEN (N.O.) - CLOSE (N.O.) Momentary Contact spring return to center Grey Polycarbonate Enclosure H - 4.50” W - 3.50” D - 2.12” Available w/ STOP (1K4xS)

1KX Key Station

1K4X Key Station

Keyed OPEN (N.O.) - CLOSE (N.O.) Momentary Contact, Center Return Yale Keyway Mortise Cylinder Standard Powder Coated Aluminum Enclosure H - 4.37” W- 4.12” D - 2.62” Specify Single, Keyed alike or Keyed in pairs.

1KXS Key Station

1K4X Key Station

1KX-IC Key Station

Keyed OPEN (N.O.) - CLOSE (N.O.) Momentary Contact, Center Return Yale Keyway Mortise Cylinder Standard Stop Button (N.C). Momentary Contact Powder Coated Aluminum Enclosure H - 4.37” W- 4.12” D - 2.62” Specify Single, Keyed alike or Keyed in pairs.

1KX-IC Key Station

1KXS-IC Key Station

1KX-IC Key Station

Keyed OPEN (N.O.) - CLOSE (N.O.) Momentary Contact, Center Return Interchangeable Core Mortise Cylinder Accepts 7 Pin Best Core. Powder Coated Aluminum Enclosure H - 4.37” W- 4.12” D - 2.62”

1KXS-IC Key Station

Keyed OPEN (N.O.) - CLOSE (N.O.) Momentary Contact, Center Return Interchangeable Core Mortise Cylinder Accepts 7 Pin Best Core. Stop Button (N.C.) Momentary Contact Powder Coated Aluminum Enclosure H - 4.37” W- 4.12” D - 2.62”

3EBX Push Button

1KXS-IC Key Station

NEMA 7 & 9 OPEN (N.O.) - CLOSE (N.O.) - STOP (N.C.) Momentary Contact Powder Coated Aluminum Enclosure H - 5.37” W - 3.00” D - 3.25”

CP2X

NEMA 7 & 9 Explosion Proof Ceiling Pull Switch DPST Momentary Contact Powder Coated Aluminum Enclosure H - 5.37” W - 3.00” D - 3.25”
