CSWI

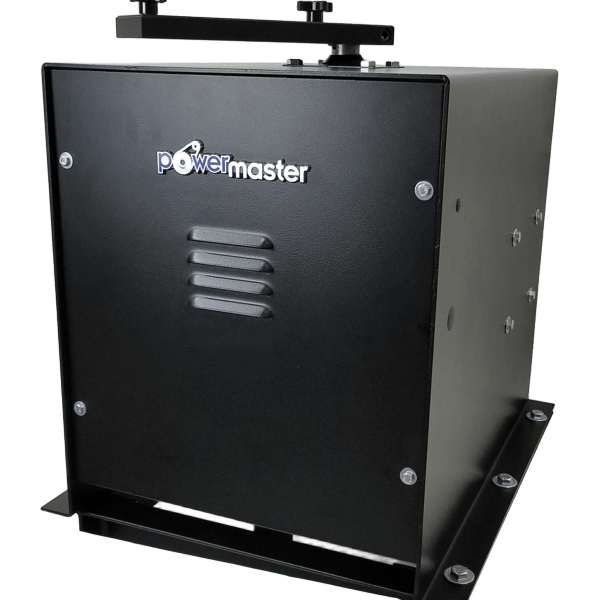

The PowerMaster Model CSWI is an industrial swing gate operator designed for high-traffic applications. It is available in both single-phase and three-phase configurations. Standard features include battery backup, soft start/soft stop operation, and an AC power outlet. The CSWI also features timer-to-close functionality, a dual gate option, and easy left/right changeover in the field. The drive arm can be easily disconnected for manual operation.

• AVAILABLE HORSE POWER: 3/4 HP - 2HP
• POWER OPTIONS::1 Phase 115/230V 3 Phase 208/230/460V
• MAX GATE WIDTH: 30FT
• MAX GATE WEIGHT: 1800 LBS
• SHIPPING WEIGHT: APPROX. 350 LBS
