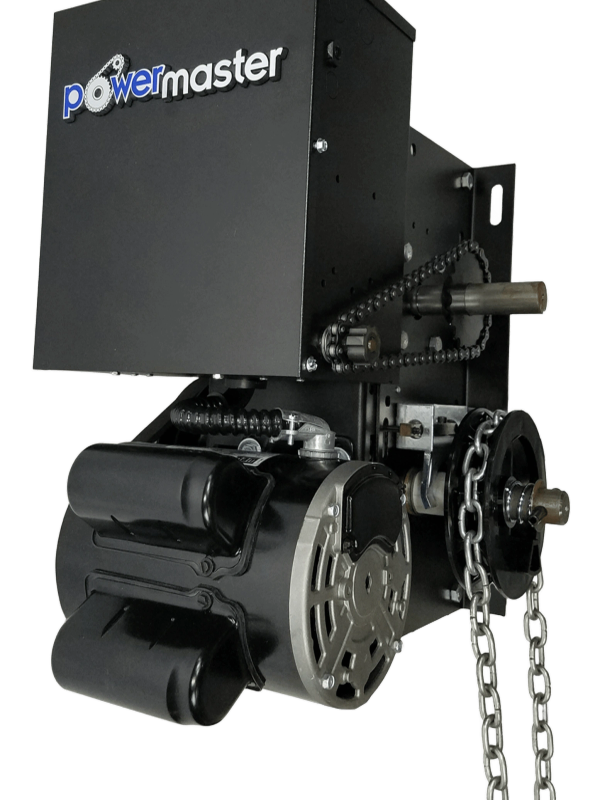

H (Hoist)

V-belt Hoist Operator Designed for Use on Standard Lift, High Lift, or Vertical Lift Sectional Doors, and Rolling Service Doors and Grilles.

• AVAILABLE HORSE POWER: 1/2 HP - 1 HP

• POWER OPTIONS: 115/230 VOLTS, 1 PHASE; OR 208/230/460 VOLTS, 3 PHASE

• SELECTABLE OPERATING MODES B2, C2, D1, E2, T, TS FIELD ADJUSTABLE

• BUILT IN FUNCTIONS INCLUDING: TIMER TO CLOSE, MID-STOP, DELAY ON REVERSE, LOCK BAR SENSING, MAXIMUM RUN TIME, ETC.

• HEAVY DUTY #50 ROLLER CHAIN AND DRIVE SPROCKET INCLUDED

• ADJUSTABLE TORQUE LIMITING CLUTCH

• BAKED ON, BLACK POWDER COAT FINISH

•  SHIPPING WEIGHT: APPROX. 95 LBS
