SG

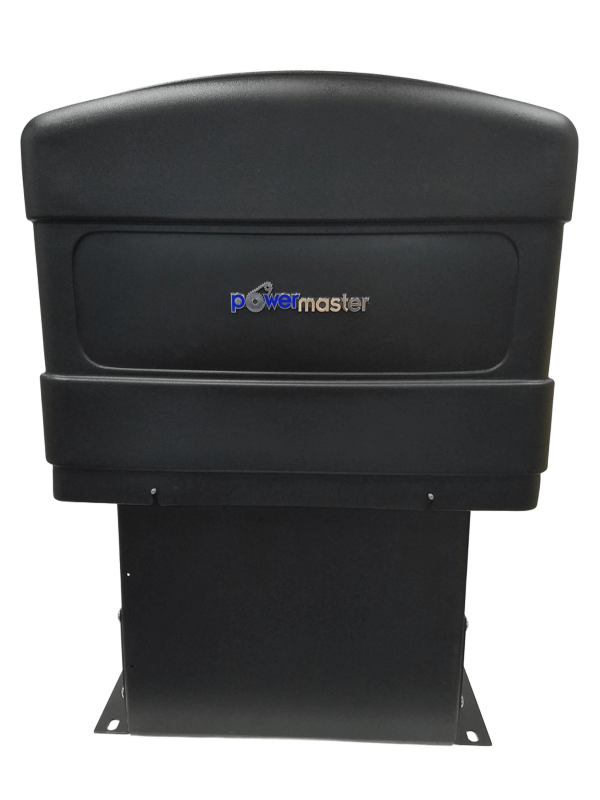

The PowerMaster Model SG is available in both single-phase and three-phase configurations. It features an onboard three-button control station, timer-to-close functionality, and easy left/right changeover in the field. The SG also includes a padlockable drive disconnect with a brass slide for manual operation in the event of a power failure. The unit is designed for convenient installation and can be post- or pad-mounted.

• AVAILABLE HORSE POWER: 1/2 HP
• POWER OPTIONS: 115/230 VOLTS, 1 PHASE; OR 208/230/460 VOLTS, 3 PHASE
• MAX GATE WIDTH: 50FT
• MAX GATE WEIGHT: 1500 LBS
• SHIPPING WEIGHT: APPROX. 235 LBS
